TS-7180

SBC with MultiTech and NimbeLink/Xbee Socket

Lifecycle: Engineering Samples | Released: January 2019 | Guaranteed Availability: 2029

This versatile embedded single board computer hits on all the main points for a low power, cost effective, Internet-of-Things (IoT) capable, and ready-to-deploy OEM board with an emphasis on data integrity.

  • Connected with WiFi, Bluetooth, MultiTech and XBee/NimbeLink
  • Easily Track Assets with GPS Radio and Cellular Modem
  • Robust TS-SILO Option Provides up to 30 Seconds of Hold up Power
  • Flexible Data Storage: FRAM, eMMC Flash, microSD
$341 (Qty. 100) $419 (Qty. 1)
No minimum order quantity on standard products.

Low Power Industrial IoT Gateway

This versatile embedded single board computer hits on all the main points for a low power, cost effective, Internet-of-Things (IoT) capable, and ready-to-deploy OEM board with an emphasis on data integrity.

The TS-7180 offers the ability to communicate seamlessly with several different networks simultaneously from a single device. Using the onboard peripherals the system can connect to Ethernet, WiFi, Bluetooth, GPS, USB, RS-232, RS-485, and CAN networks or devices. Built-in module interfaces like the MultiTech and XBee/NimbeLink sockets and internal USB ports (coming soon) allow expansion to other networks like Cellular, DigiMesh, ZigBee, Lora, and other proprietary or industry specific networks. This ability to communicate over a wide variety of wired and wireless interfaces puts the TS-7180 in an excellent position to be an IoT node or gateway.

Available with the TS-7180-SRW9I is a GPS module which enables applications to track global position of the TS-7180. Perfect for asset tracking.

A Nine-Axis Micro-Electro-Mechanical System (MEMS) motion tracking device containing a gyroscope, accelerometer, and compass is an on-board option for asset management, fleet management, and other applications which would require sensing motion or vibration in the environment.

Applications with strict low power requirements will appreciate the work that's been done to reduce power consumption to less than 1 W in typical conditions and a 22 mW sleep mode. Power over Ethernet (PoE) is supported via a daughter card, if desired.


Robust and Rugged Engineering

Each component on the TS-7180 has been carefully chosen to ensure not only reliable operation in the field but also to get maximum product lifespan for 10+ years. The fanless design of the TS-7180 paired with the low cost enclosure is able to withstand high vibration, high debris, and a wide temperature range of -40 °C to 85 °C.

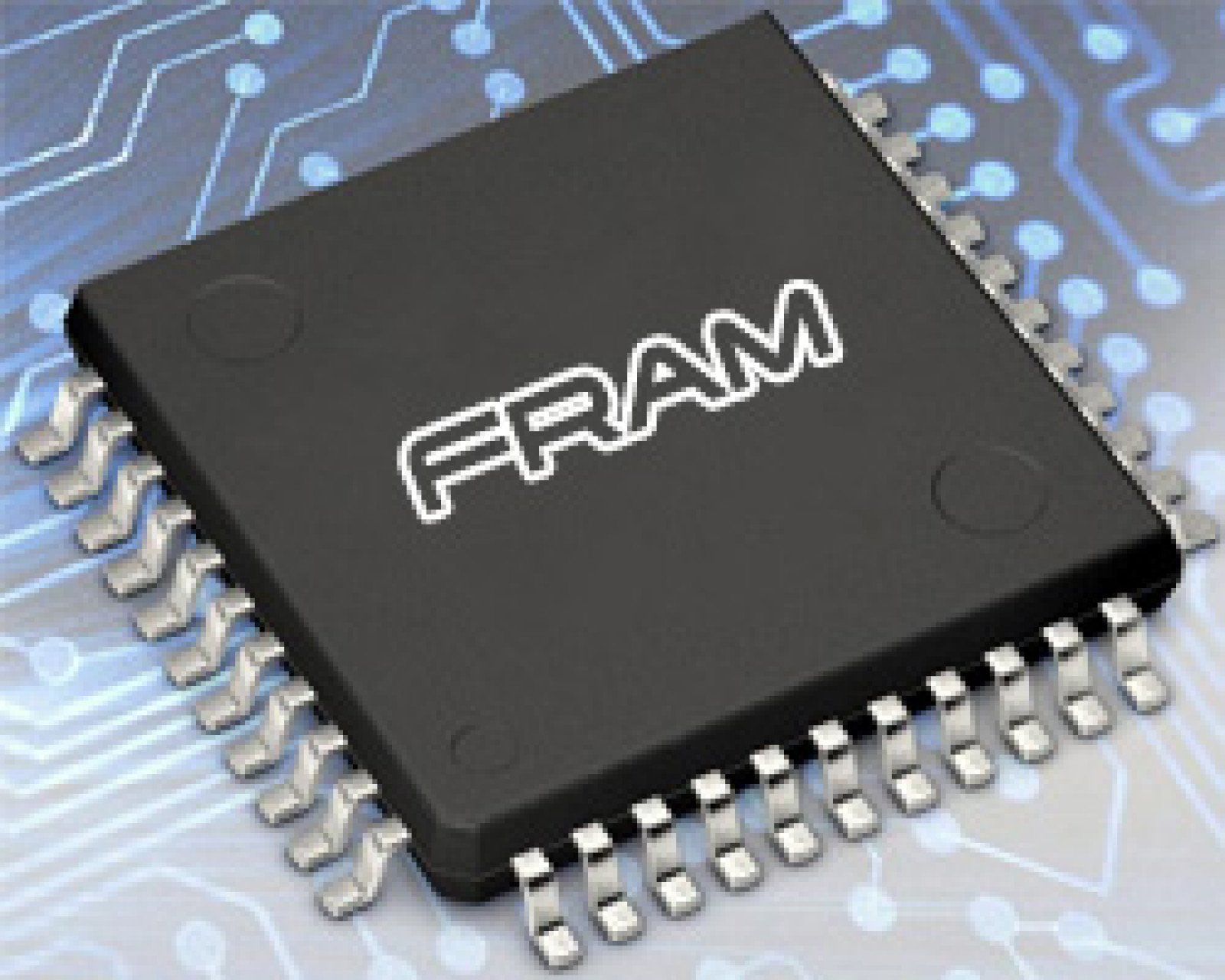

RELIABLE DATA STORAGE WITH TS-SILO AND FRAM

The TS-SILO power reserve ensures that there will never be data loss or corruption when there is unexpected interruptions in power. TS-SILO provides another 30 seconds of operation to allow graceful system shutdown, protecting data stored on the on board eMMC or a microSD card. The onboard MLC eMMC flash is configurable as pseudo SLC (pSLC) memory for further reliability. Additionally the TS-7180 integrates Ferroelectric RAM (FRAM or FeRAM ) which combines non-volatile data storage with incredibly high read/write endurance for the ultimate in reliability for heavy data logging applications.

Short Time to Market with Long Term Deployment

Everything is preloaded to get your application up and running quickly. Debian Linux OS, utilities, and tools are preloaded to help you get the most out of the hardware features. The guaranteed 10+ year lifecycle ensures a long-term deployment in the field, free from expensive redesigns that commonly accompany "low-cost" competitor products with no guaranteed long-term availability.

The TS-7180 single board computer features:

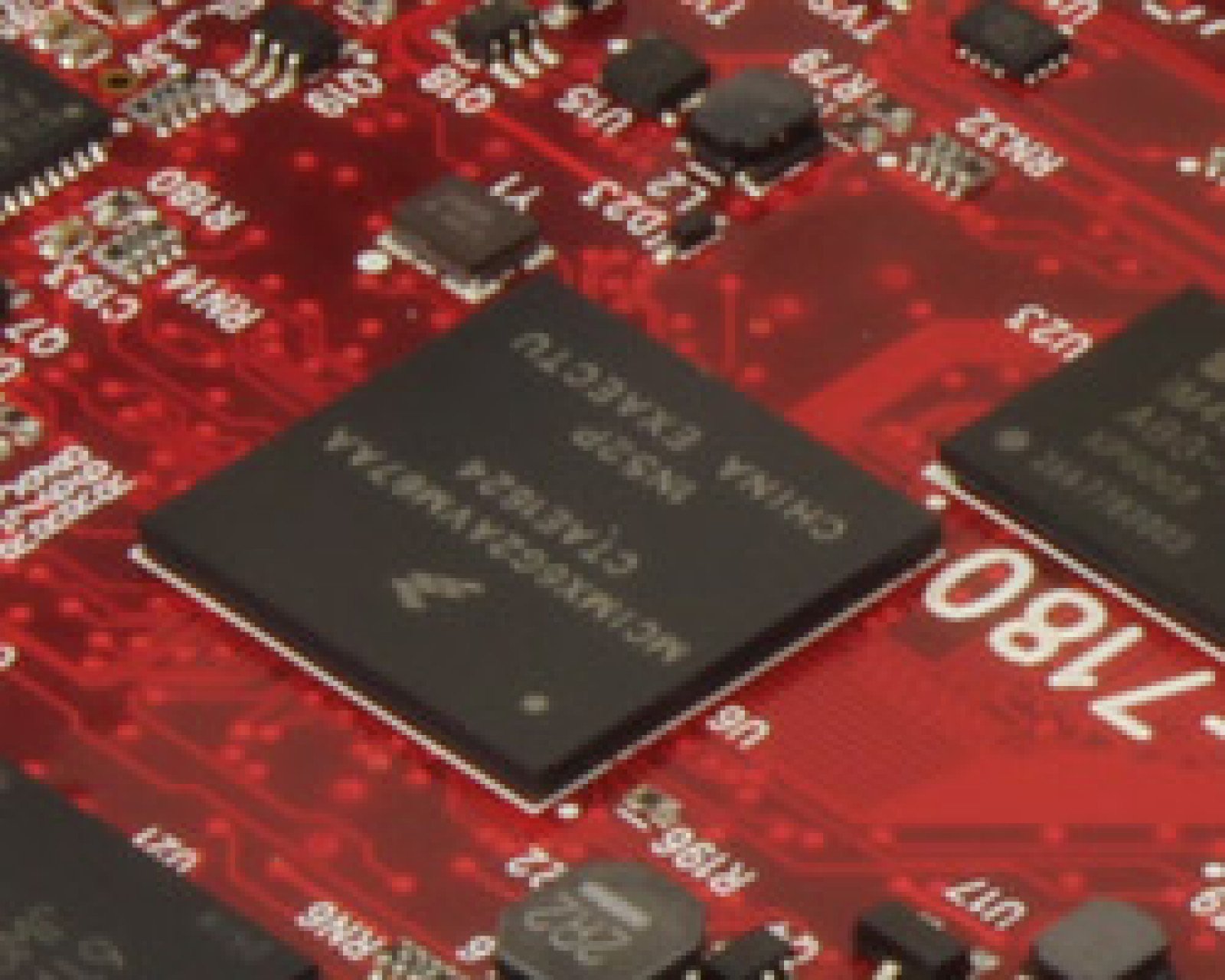

  • NXP i.MX6UL SOC with a 696 MHz Arm® Cortex®-A7 core
  • 512 MB DDR3 RAM (1 GB DDR3 RAM Option Available)
  • 4 GB MLC eMMC Flash, configurable as pSLC for added reliability

Industry standard connectors, such as USB host and device ports, Ethernet, and serial ports are included. In addition, rugged screw terminals and a user programmable button are also included. Additional storage is possible through the microSD socket. A battery-backed real time clock (BBRTC) keeps accurate time for the system and a watchdog timer is there to help when a system becomes unresponsive in the field.

Applications with strict low power requirements will appreciate the work that's been done to reduce power consumption to less than 1 watts in typical conditions and 22 mW sleep mode. Also, applications which are prone to unexpected power outages or frequent power cycling can rely on the optional TS-SILO to provide up to 30 seconds of power reserve in order to run shutdown scripts and gracefully halt the system in order to prevent filesystem and disk corruption.

Software

By default, command line Debian Buster is loaded which provides a massive repository of prebuilt applications and services and Debian provides a long history of focus on stability and support.

Software features include:

  • U-Boot bootloader
  • Linux Kernel
  • Debian Buster distribution support
  • Many programming languages supported (C, C++, Python, node.js, etc.)
  • Source code examples available
  • Buildroot

Buildroot is a simple, efficient and easy-to-use tool to generate embedded Linux systems through cross-compilation. To assist customers heading down this path we have forked a stable snapshot of Buildroot and have added on top of it everything that is required for operation with one of our products. For more information, see the Buildroot Configuration section in the manual.


Please contact embeddedTS for further information regarding Operating System and software support for this product.

Linux® is the registered trademark of Linus Torvalds in the U.S. and other countries.
Arm and Cortex are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or elsewhere.

embeddedTS provides complete documentation for our mature products, including manuals, schematics, mechanical drawings, etc. The most recent documentation files are always made available through our website. If you don't find the documentation you are looking for, contact support for more information. Also, please make sure to visit our Embedded Systems Support webpage, and our official documentation.

Documentation
Other
Block Diagram
Featured On
From the Blog:
Product Notices:
Subscribe to the Product Communication System (TS-PCS) for TS-7180 Notices
CPU
Architecture Arm
Part Number i.MX 6UltraLite
Vendor NXP
CPU Speed 696 MHz
Floating Point Unit Yes
CPU Cores (Max) 1x
Core Specs
Base Memory Capacity 512 MB
Maximum Memory Capacity 1 GB
Storage
Base Flash Capacity 4 GB
Flash Type eMMC
microSD Card Socket 1x
FRAM 2 KB
Other
Battery-Backed Real Time Clock 1x
General I/O
General-Purpose Input/Output (GPIO) Pins 7x
PWM Ports 1x
Analog to Digital Ports (ADC) 4x
Quadrature Counter 3x
Tachometer 6x
Digital Input 4x
Serial Interfaces
RS-232 Ports 3x
RS-485 Ports 1x
TTL-Level UART Ports 1x
SPI Ports 1x
I2C Ports 1x
Peripheral Interfaces
USB Host Ports 2x
Industrial Protocols
CAN Ports 2x
Networking
10/100 Ethernet Ports 2x
Power-over-Ethernet Yes (via Daughter Card)
Physical
Operating Supply Voltage 8 VDC to 30 VDC
Fanless Temperature Range -40 °C to 85 °C
Width 112.0 mm
Length 112.0 mm
Radio Comms
GPS Radio Yes
Cellular Modem Yes (1x MultiTech or NimbeLink Cell Modem Socket)
Bluetooth Yes
WiFi Radio / Wireless LAN Yes
XBee 1x
Solutions
TS-SILO Power Reserve (Super Capacitors) Yes
Software
Linux Kernel Version 4.9
Debian Linux Buster (10)
Sensors
Accelerometer/Gyro Yes
Magnetometer Yes
TS-7180 Block Diagram
TS-7180 Block Diagram Image

(Download PDF version)

Quantities
Product Configurations 1 10 25 50 100
TS-7180-SMW1I $419 $392 $375 $359 $341
TS-7180-SRW9I $505 $478 $461 $445 $426
TS-7180-SRW9I-CC -- -- $528 $512 $493
TS-7180-SMW1I-CC -- -- $442 $426 $408

Product Customization

embeddedTS can provide you with a custom tailored version of our standard product starting at minimum order sizes of 100 units or more. Customized products can be based on various combinations of many of the standard product features. There will be a one-time customization fee to cover the set up of your custom part number and production processes. Once the set up is complete the standard lead time for your customized product would be 6-8 weeks. Please contact us to get started on tailoring this product to meet your needs. In addition to tailoring our standard product to your needs, for slightly larger orders sizes, embeddedTS can also provide a custom design based on this product to meet your mechanical requirements or to add features.

In addition to tailoring features available in our standard product set, the following options are available:

Product Option Qty. 100 Price
8 GByte Industrial Temperature eMMC $13
16 GByte Industrial Temperature eMMC $31
32 GByte Industrial Temperature eMMC $53
64 GByte Industrial Temperature eMMC $80
TS-DC767-POE Thumbnail
TS-DC767-POE
In Board Specific Peripherals

Daughter card with Power-over-Ethernet

More information
PS-MDR-20-24 Thumbnail
PS-MDR-20-24
In Power Supplies

24W Single Output Industrial DIN Rail Power Supply

More information
TS-ENC718 Thumbnail
TS-ENC718
In Enclosures

Low cost plastic enclosure for the TS-7180-SMW1I and TS-7180-SRW9I

More information

Product Configuration
Part Description Price
TS-7180-SMW1I TS-7180 SBC with the i.MX6UL 696MHz Arm Cortex A7 512MB DDR3 RAM and 4GB eMMC flash, multitech, niMBelink/xbee socket, 2 CAN ports, 3 rs-232, TS-SILO, FRAM, wifi/bluetooth w/u.fl antennaConnector, (-40C to 85C) Pricing
TS-7180-SRW9I TS-7180 SBC with the i.MX6ul 696MHz Arm Cortex A7 1GB DDR3 RAM and 4GB eMMC flash, multitech, niMBelink/xbee socket, 2 CAN ports, 3 rs-232, TS-SILO, FRAM, wifi/bluetooth w/u.fl antennaConnector, gps, gryro (-40C to 85C) Pricing
Conformal Coated Product Configurations
Part Description Price
TS-7180-SRW9I-CC Conformal Coated TS-7180-SRW9I. TS-7180 SBC with the i.MX6UL 695MHz Arm Cortex A7 1GB DDR3 RAM and 4GB eMMC Flash, MultiTech, NimbeLink/Xbee socket, 2 CAN ports, 3 RS-232, TS-SILO, FRAM, WiFi/Bluetooth w/u.FL antenna Connector, GPS, Gryro (-40 to 85C) Pricing
TS-7180-SMW1I-CC Conformal Coated TS-7180-SMW1I. TS-7180 SBC with the i.MX6UL 695MHz Arm Cortex A7 512MB DDR3 RAM and 4GB eMMC Flash, MultiTech, NimbeLink/Xbee socket, 2 CAN ports, 3 RS-232, TS-SILO, FRAM, WiFi/Bluetooth w/u.FL antenna Connector, (-40 to 85C) Pricing
Board Specific Peripherals
Part Description Price
TS-DC767-POE Daughter card with Power-over-Ethernet $62
Flash Media
Part Description Price
MSD-8GB-7180 TS-7180 bootable 8GB Class 10 Micro SD card including Arm tool chain, Debian Jessie Linux filesystem, documentation, and further binaries/utilities $30
MSD-8GB-USB-7180 TS-7180 bootable 8GB Class 10 Micro SD card including Arm tool chain, Debian Jessie Linux filesystem, documentation, and further binaries/utilities, includes USB reader $63
MSD-8GB-BLANK 8GB Class 10 microSD card $30
Accessories and Extras
Part Description Price
CB-ANT-WILC Antenna and cable for u.FL WiFi modules $17
CB-JUMPER-10-F-F-6 Quantity 10 female-to-female 6-inch red jumper wires for use with 0.1" headers $7
CB-USB-AMBM USB Cable w/ connectors USB-A Male to USB-B Male $9
CB-ANT-GPS 5 meter SMA GPS Antenna $33
Power Supplies
Part Description Price
PS-MDR-20-24 24W Single Output Industrial DIN Rail Power Supply $39
PS-12VDC-REG-2_5AMP-2PB Regulated 12VDC, 2.5A wall mounted power supply with 2-pin black connector (100-240VAC, 50-60Hz, A-type plug) $21
DIN Enclosures
Part Description Price
TS-ENC718-DIN Low cost plastic enclosure with DIN Clip for the TS-7180-SMW1I and TS-7180-SRW9I $41
Enclosures
Part Description Price
TS-ENC718 Low cost plastic enclosure for the TS-7180-SMW1I and TS-7180-SRW9I $34
Development Kits
Part Description Price
KIT-7180 Development kit including suggested parts for new development. Includes packaged parts Includes packaged parts:
  • MSD-8GB-USB-7180: TS-7180 bootable 8GB Class 10 Micro SD card including Arm tool chain, Debian Jessie Linux filesystem, documentation, and further binaries/utilities, includes USB reader
  • PS-12VDC-REG-2_5AMP-2PB: Regulated 12VDC, 2.5A wall mounted power supply with 2-pin black connector (100-240VAC, 50-60Hz, A-type plug)
  • CB-USB-AMBM: USB Cable w/ connectors USB-A Male to USB-B Male
$109

CA Prop 65 Warning WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

TS-7180-SMW1I TS-7180-SRW9I
CPU Arch Arm Cortex-A7
CPU Cores 1
CPU Speed 696 MHz
RAM 512 MBytes 1 GByte
Onboard Storage 4 GByte MLC eMMC Flash
FRAM 2 kByte
microSD Socket 1
Wireless Wireless 802.11b/g/n + Bluetooth (4.0 BLE) w/ u.FL antenna Connector
Other Wireless 1x Socket for MultiTech Cell Modem. 1x Socket for Digi Radios or NimbeLink Cell Modems
USB Host (External Access) 1x USB 2.0 Type A
USB Host (Internal Expansion) Coming Soon
USB OTG On Daughter Card Header
Sensors -- Nine-Axis Micro-Electro-Mechanical System (MEMS) w/ gyroscope, accelerometer and compass
GPS -- Integrated GPS Radio
Analog/High Voltage 4x 10V ADC or 4-20mA, 7x 30V DIO, 2x 24V Quadrature, 2x 24V 2kHz Tachometer, 5V @1A Output Power
Common Interfaces 2x CAN, 3x RS-232, 1x RS-485, SPI & I2C, Console on USB Device
Input Voltage/Power 8V-30V, plus Optional Daughter Card for PoE support
TS-SILO Support for ~ 20 seconds of power hold up in case of sudden power loss to safely shut down
Operating Temperature -40 °C to 85 °C
Standard Shipping OS Linux Debian
