The TS-TPC-9390 combines the power of the NXP i.MX93 platform with an industrial-grade touchscreen, creating an all-in-one solution for control interfaces, automation, and HMI (Human-Machine Interface) applications.

Key Features

• 7" or 10" Industrial-Grade Capacitive Touchscreen

• NXP i.MX93 Dual Cortex®-A55 + Cortex®-M33 Processor

• Up to 2GB Industrial DDR4 RAM

• Onboard eMMC and microSD storage options

• Preloaded Debian Linux OS with long-term support

• Gigabit Ethernet, RS-232/RS-485, USB, CAN, I2C, SPI, PWM, ADC

• Optional Wi-Fi, Bluetooth, and Cellular Connectivity

• Secure Boot, Hardware Cryptography, and TrustZone®

• Wide Temperature Range: -20°C to +70°C

• Durable IP65 Front Panel Rating

Product Overview

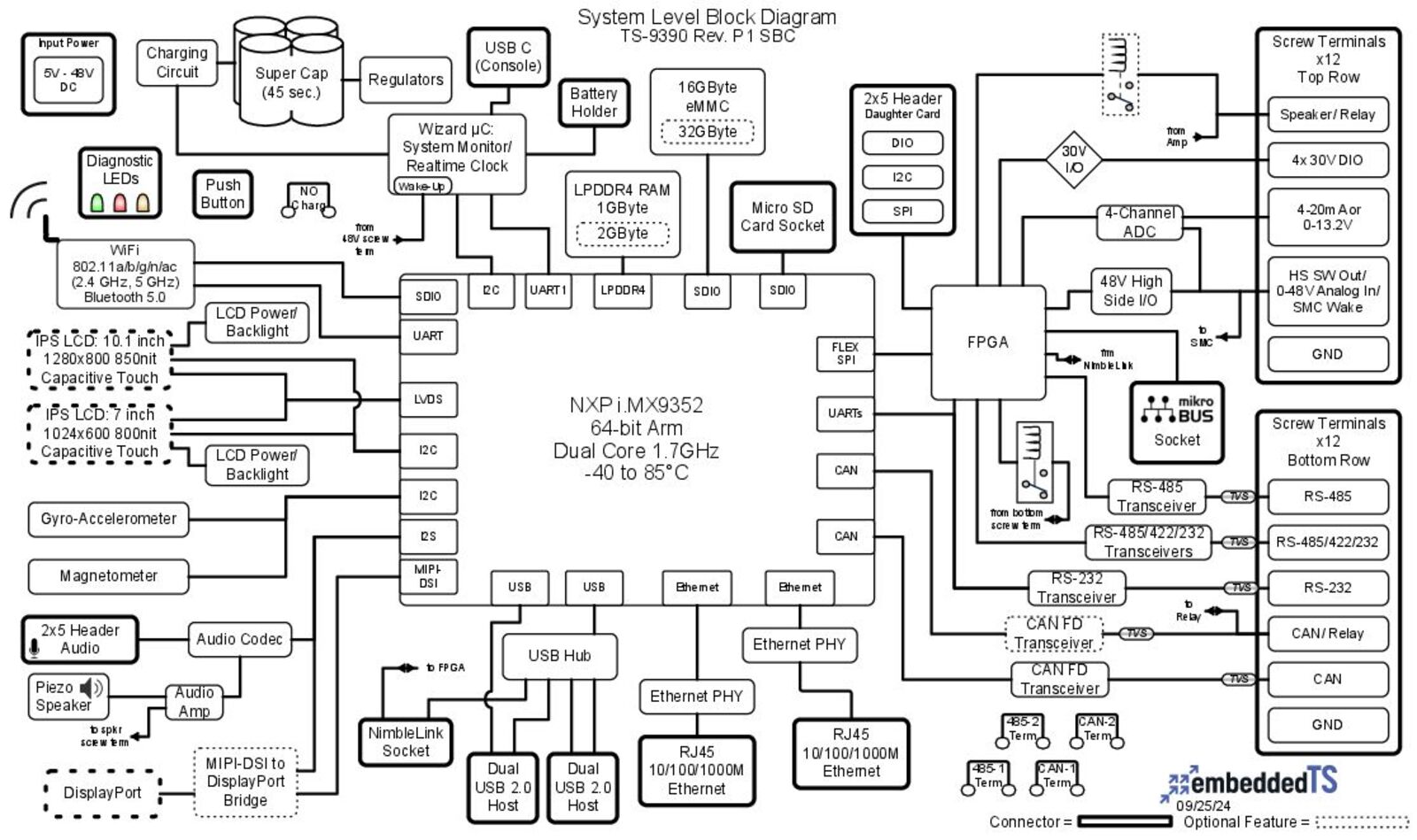

The TS-TPC-9390 integrates the proven design of the TS-9370 Single Board Computer into a ruggedized touch panel form factor, enabling powerful and reliable HMI applications in industrial environments.

Driven by the NXP i.MX93 processor, the TS-TPC-9390 balances low power consumption with advanced computing and security capabilities. Its 7" capacitive touchscreen is bright, responsive, and built to withstand harsh conditions, featuring a sealed front panel for protection against dust and moisture.

With pre-installed Debian Linux, comprehensive I/O, and long-term availability guarantees, the TS-TPC-9390 makes it easy to deploy smart interfaces for automation, energy, medical, transportation, and IIoT projects.
